Real-Time BOP Monitoring with IPT Global’s Equipment Health Monitoring Solution

September 20, 2022 4 min read

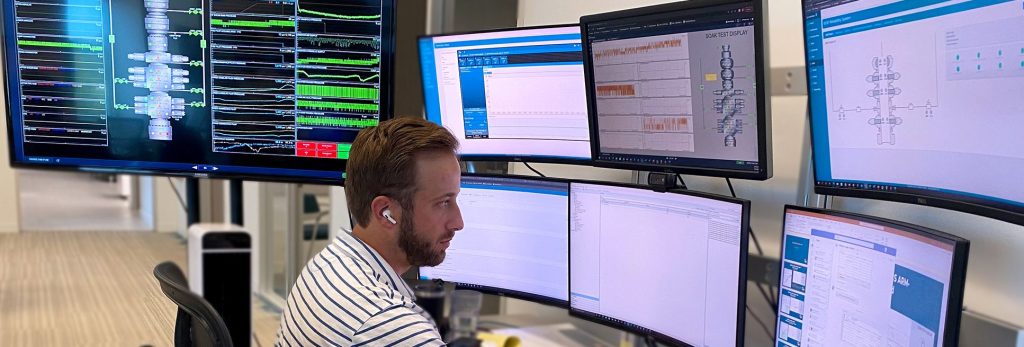

IPT Global team members monitoring real-time well data across multiple screens in a remote operations center

IPT Global’s SureTec® Equipment Health Monitoring solution includes a Monitoring module that gives rig personnel real-time access to blowout preventer (BOP) data, improving transparency and supporting data-driven decisions. This visibility also strengthens rig safety with instant access to current and historical performance data. Ultimately, data streamed from the BOP control systems enables predictive and condition-based maintenance.

Key Features of the Monitoring Module

IPT Global’s Monitoring module displays clear BOP visualizations to ensure close correlation between the panels and gauges that rig personnel are accustomed to seeing.

Live BOP Stack: Real-time view shows the status of the BOP stack by displaying the components along with color indicators showing the state of each component. In this view, the user can also see key pressure, temperature, and flowmeter values.

Live Pressures: Real-time view provides an easy-to-read visual of key pressures during operations. The user has the option to view the indicators in radial or linear gauge form.

Equipment Health Monitoring dashboard showing BOP stack schematic and live pressure trends
Equipment Health Monitoring dashboard showing BOP stack schematic and live pressure trends.

Live Database and Visualizations: Real-time view gives complete access to all data recorded on the data logger located on a rig. It allows the user to graph and trend up to 10 values in a live view, as well as go back to evaluate historical data.

Live BOP pressure gauges, stack schematic, and pump run table in Equipment Health Monitoring
View live BOP pressure gauges, stack schematics, and pump run tables in Equipment Health Monitoring.

Rig-Side Function Test Management: This digital solution tracks rams and annular function testing. It provides real-time assurance of component states and control systems in a user-friendly interface. Clients can utilize function test management with our digital approval management platform.

Historical pressure trend charts for HPU accumulator, pod supply, and manifold in Equipment Health Monitoring
A view of historical pressure trend charts for HPU accumulator, pod supply, and manifold in Equipment Health Monitoring.

Data integrations (APIs): We also offer the ability to send data directly to our clients’ enterprise data system via our secure API connector, allowing them to integrate our data within their decision-making matrix.

Real-Time Operations Center (RTOC)

Experienced and trained subject matter experts are the foundation of our real-time monitoring service. IPT Global BOP and Well Control Equipment experts have extensive hands-on subsea backgrounds and are rigorously training in monitoring and analysis techniques. Our BOP experts communicate and collaborate with the rigs in real-time, providing recommendations, troubleshooting, assistance, and remote assurance. Our team works hand-in-hand with clients to support total compliance and permitting processes.

IPT Global Well Control Equipment specialists also collaborate with our in-house data science team to create custom algorithms that automate anomaly detection. Our in-house software and data science teams collaborate with major operators around the world to continuously improve products that enhance rig safety. For more than a decade, IPT Global has paved the path in data acquisition and advanced data analysis from rigs and well control equipment.

IPT Global Data Science team looking at data on a  set of monitors
Members of IPT Global’s in-house Data Science team collaborate to create custom algorithms that automate anomaly detection.

What Type of Data is Collected Through Real-Time Monitoring?

IPT Global’s Equipment Health Monitoring solution allows data to be monitored (e.g., pressure, temperature, BOP status, trends, etc.) from the BOP control panel (Original Equipment Manufacturer (OEM) specific). Data monitoring is performed remotely and in real time. Monitoring includes live visualizations of the BOP status and pressures.

How is Real-Time Monitoring Data Transmitted During Operations?

Data is transmitted from the rig to the Cloud. In the event connectivity issues prevent data from being sent to the Cloud, it is also preserved on the rig in a local database.

How is the Data Labeled and Monitored?

Labeling of data is defined per the OEM nomenclature and specific to each control panel. Monitoring is performed by subsea equipment SMEs and trained field personnel with BOP monitoring experience. OEM nomenclature is mapped to accepted industry terminology at the remote monitoring site if required.

To learn more about how IPT Global’s Equipment Health Monitoring solution can help improve BOP integrity assurance, or to request a demonstration, contact us today.
